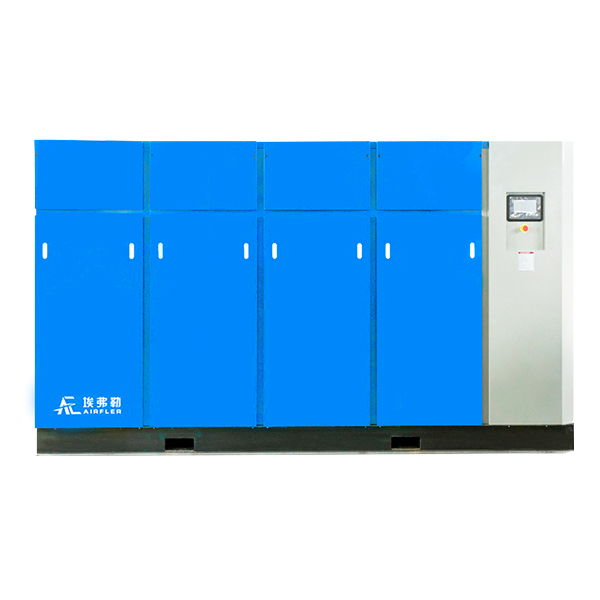

Name: Two Stage Fixed Speed Rotary Screw Air Compressor
Brand: Air Compressor Solution Manufacturer - Airfler
Availability: InStock
Rating: 5 (1 reviews)

Description

Product Features

■ Durable, efficient and stable main engine

■ Integrated cooler, integrating oil cooling and aftercooling

■ Cyclone type internal and external oil separator design to reduce the oil content of the air

■ Wound oil separator design, long life

■ IP54, B-level temperature rise motor, high temperature and pollution resistance

Parameter

AF-Z series	Working pressure		capacity		power		noise	Airoutlet pipe diameter	net weight	Dimensions(mm)
	bar	psig	（m3/min)	cfm	kW	hp	dB		kg	length	width	height
AF-55Z	8	116	12.8	452	55	75	65±3	G2	2000	2160	1350	1750
	10	145	10.4	367
	13	189	8.8	311
AF-75Z	8	116	16.5	583	75	100	68±3	G2	2100	2160	1350	1750
	10	145	13.5	477
	13	189	12.2	431
AF-90Z	8	116	20.1	710	90	120	70±3	DN65	2400	2420	1530	1720
	10	145	17.3	611
	13	189	15.9	562
AF-110Z	8	116	23.5	830	110	150	72±3	DN80	3300	2650	1600	1850
	10	145	19.8	699
	13	189	17.6	622
DH-132Z	8	116	27.8	982	132	175	74±3	DN80	3500	2650	1600	1850
	10	145	24	848
	13	189	20	706
AF-160Z	8	116	33.3	1176	160	215	75±3	DN100	4500	3350	1900	1950
	10	145	30	1059
	13	189	28.2	996
AF-185Z	8	116	38.6	1363	185	250	76±3	DN100	4600	3350	1900	1950
	10	145	34.4	1215
	13	189	31.8	1123
DH-200Z	8	116	42.5	1501	200	270	76±3	DN100	4850	3350	1900	1950
	10	145	40.2	1420
	13	189	35	1236
AF-220Z	8	116	47.1	1663	220	300	78±3	DN100	6000	3700	2060	2150
	10	145	42.5	1501
	13	189	37.2	1314
AF-250Z	8	116	52.5	1854	250	350	78±3	DN100	6650	3700	2060	2150
	10	145	48.2	1702
	13	189	43	1519
AF-280ZW	8	116	58	2048	280	375	80±3	DN125	6700	3700	2060	2150
	10	145	52.3	1847
	13	189	47.8	1688
AF-315ZW	8	116	66	2331	315	422	82±3	DN125	7500	3700	2400	2300
	10	145	57.9	2045
	13	189	50.5	1783
AF-355ZW	8	116	73	2578	355	476	82±3	DN125	7600	3700	2400	2300
	10	145	65	2295
	13	189	54.8	1935
AF-400ZW	8	116	85	3000	400	540	82±3	DN150	8900	4200	2400	2600
	10	145	74	2613
	13	189	66	2330
AF-450ZW	8	116	95.9	3386	450	600	82±3	DN150	9200	4200	2400	2600
	10	145	84.1	2970
	13	189	72	2542
AF-500ZW	8	116	103	3637	500	670	85±3	DN200	10500	4200	2400	2600
	10	145	95.5	3372
	13	189	77.8	2747
AF-560ZW	8	116	120	4237	560	750	85±3	DN200	11000	4200	2400	2600
	10	145	103.1	3640
	13	189	90	3178

Customized air compressor applications
